Plow Bolt 3/4"-10UNC — 3" Length

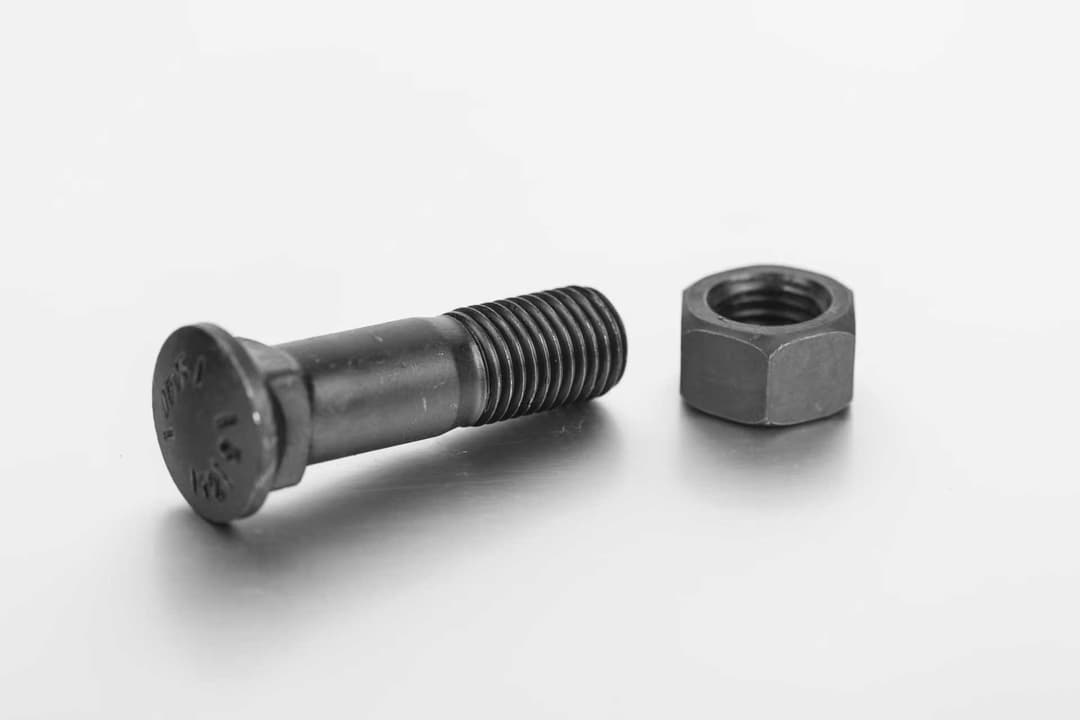

The 1J3527 is a 3/4" countersunk plow bolt with 3/4"-10UNC threading — one of the essential fasteners in ground engaging equipment. At 76 mm (3") overall length, this Grade 10.9 fastener is manufactured by AzuLong Wear Parts from 40Cr Alloy Steel with black oxide finish. Used to mount cutting edges, wear plates, and ground engaging tools on Caterpillar ground engaging equipment including motor grader blades, wheel loader cutting edges, bulldozer end bits, and scraper cutting edges.
Grade 10.9 (Class 10.9) plow bolts provide a tensile strength of approximately 1040 MPa and yield strength of 940 MPa. The higher strength rating makes these bolts essential for heavy-duty cutting edge and ground engaging equipment where bolts must resist shearing forces from rock and compacted material. Manufactured from 40Cr alloy steel with controlled heat treatment to achieve consistent mechanical properties.
The 3/4" diameter plow bolt handles heavier loads than 5/8" and is common on larger grader blades, scraper cutting edges, and bulldozer end bits. The increased shank cross-section provides significantly higher shear resistance — critical when cutting edges encounter buried rock or concrete.
This plow bolt is used across: CAT Motor Graders (120, 140, 160), CAT Wheel Loaders (950, 966, 980), CAT Bulldozers (D6, D7, D8), CAT Scrapers (613, 621, 631). The countersunk head design allows the bolt to sit flush with the cutting edge surface, preventing the bolt head from protruding into the material flow path where it would cause accelerated wear and reduced cutting efficiency. Companion nut part number: 2J3507. Contact rocky@azulong.com or WhatsApp +86-13777046128 for pricing and availability.
No middleman — buy directly from the manufacturer in Ningbo, China
Certified quality management with per-batch quality documentation
Per specification, negotiable for first/trial orders. Samples available.
Steel stamp logo on bolt head, branded packaging, custom labels
Grade 8.8, 10.9, and 12.9 available. 40Cr and 35CrMo steel.
FOB Ningbo to worldwide. Logistics partner recommendations available.
Get a quote within 24 hours. Factory-direct pricing available.
